ETL Listed Video Panel
IRiS™ R3 is an ETL listed professional LED video panel that is perfect for either indoor rental or permanent installations. Each panel features 128x128 resolution (16,384 pixel), high-contrast 3-in-1 SMD2121 blackbody LEDs for vivid colors and wide gamut. IRiS™ R3 features 3.9mm pixel pitch and boasts exceptional 1200nits brightness and 1920Hz refresh rate for captivating performance in-person or on camera. Connecting panels together is a breeze thanks to IRiS's sophisticated quick lock system.
Lightweight + Easy Maintenance

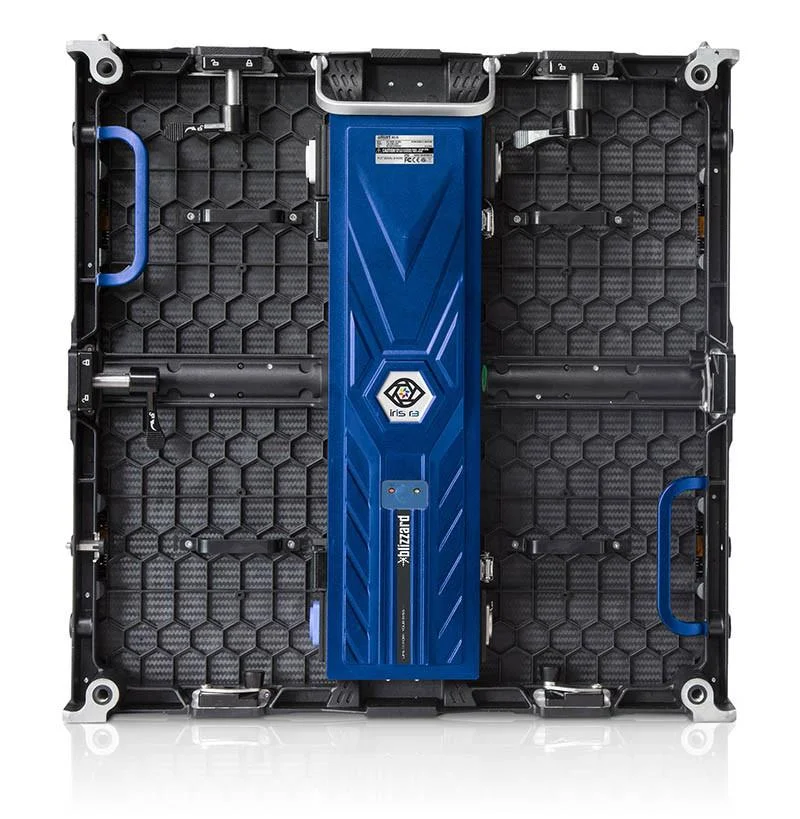

Each IRiS™ panel weighs in under 17lbs thanks to its strong and lightweight diecast aluminum frame. LED module maintenance is tool-free and easy with IRIS's 4x magnetic-mount front/rear modules per panel (250x250mm). The video panels work with the Novastar® VX4S professional LED display controller, making an external scaler unneeded. Each IRiS™ R3 video panel comes packaged with 1x powerCON®-compatible 3' interconnect cable, and 1x etherCON®-compatible 3' interconnect cable.
MAIN FEATURES
• Certificate: cETLus | FCC | CE | RoHS
• Pixel Pitch (mm): 3.9
• Panel Dimensions: 500×500×95mm
• Pixel Per Panel: 128×128
• Panel Weight: 7.5kg / 16.5lbs
• Panel Material: Cast Aluminum
• Modules Per Panel: 4
• Module Dimensions: 250×250mm
• Curvature: 10° concave, 5° convex maximum
• LED Type: Blackface SMD 2121
• Brightness (cd/m2): 1200
• Refresh Rate (Hz): 1920
• Viewing Angle (H/V) (°): 150/130
• Send/Receive Architecture: NovaStar
• Power: Neutrik® powerCON® in/out
• Data Neutrik® etherCON® in/out
• IP Rating (Front/Rear): IP40/IP21
For more information or to schedule a demo call 815-271-3000 or email: sales@audiobiz.com
